重油油壓缸LA型尺寸圖

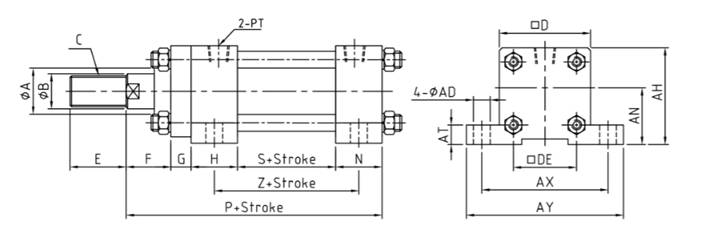

重油LA型 HCB+LA

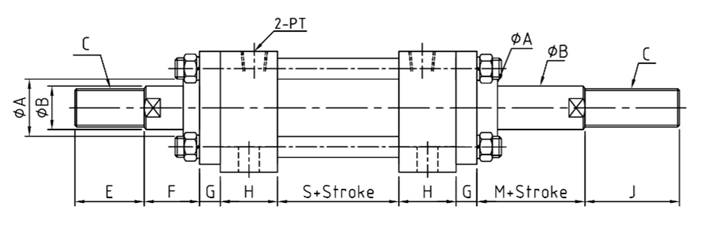

重油LA雙軸型 HCD+LA
HCB-HCD TYPE |
LA TYPE |
|||||||||||||||||||||||
SIZE |
Ø A |
Ø B |
C |
D |
DE |
E |
F |
G |
H |
N |
S |
Z |
P |
M |
J |
PT |
AT |
AX |
AY |
AN |
AH |
Ø AD |
LD |
|
Ø40 |
33 |
20 |
M16XP1.5 |
65 |
45 |
30 |
25 |
11 |
32 |
25 |
53 |
157 |
179 |
15 |
40 |
1/4 |
11 |
95 |
118 |
45 |
69 |
11 |
69 |
|
Ø50 |
38 |
25 |
M22XP1.5 |
75 |
52 |
35 |
25 |
11 |
37 |
29 |
53 |
86 |
155 |
15 |
40 |
3/8 |
171 |
110 |
132 |
42.5 |
80 |
11 |
10 |
|
Ø63 |
43 |
30 |
M26XP1.5 |
90 |
63 |
40 |
30 |
12 |
37 |
29 |
53 |
86 |
161 |
15 |
45 |
3/8 |
19 |
128 |
154 |
50 |
95 |
14 |
10 |
|
Ø80 |
53 |
40 |
M36XP1.5 |
110 |
80 |
45 |
30 |
14 |
38 |
30 |
60 |
94 |
172 |
15 |
45 |
1/2 |
25 |
152 |
184 |
60 |
115 |
18 |
13 |
|
Ø100 |
63 |
50 |
M40XP2.0 |
135 |
102 |
50 |
40 |
15 |
44 |
34 |
65 |
104 |
198 |
15 |
50 |
1/2 |
27 |
179 |
210 |
72.5 |
140 |
18 |
14 |
|
Ø125 |
75 |
60 |
M50XP2.0 |
165 |
122 |
60 |
45 |
18 |
49 |
39 |
80 |
124 |
231 |
20 |
55 |
3/4 |
32 |
211 |
250 |
90 |
170 |
22 |
18 |
|
Ø150 |
85 |
70 |
M60XP2.0 |
195 |
148 |
70 |
45 |
20 |
49 |
41 |
80 |
125 |
235 |
20 |
55 |
3/4 |
37 |
255 |
300 |
102.5 |
200 |
25 |
18 |
|
Ø180 |
105 |
90 |
M80XP2.0 |
235 |
182 |
80 |
50 |
22 |
56 |
46 |
91 |
142 |
265 |
20 |
64 |
1” |
49 |
295 |
340 |
125 |
242.5 |
25 |
20 |
|
Ø200 |
115 |
100 |
M90XP2.0 |
262 |
200 |
80 |
50 |
25 |
56 |
46 |
101 |
152 |
278 |
20 |
70 |
1” |
52 |
340 |
390 |
139 |
270 |
30 |
20 |
|
