圓型油壓缸FA板尺寸圖

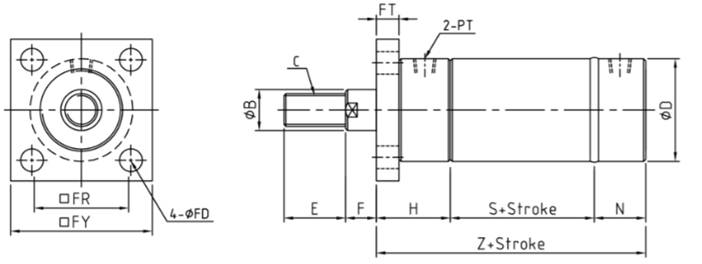

圓油FA型 RCB+FA

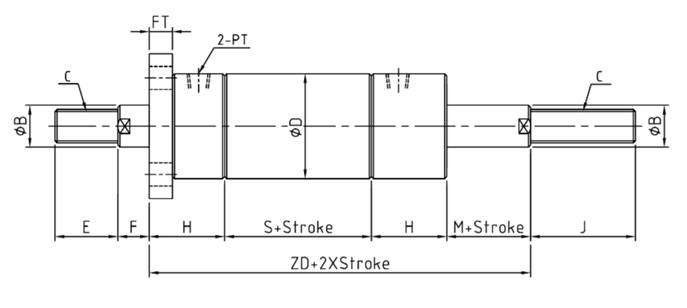

圓油FA雙軸型 RCD+FA
|
RCB-RCD TYPE |
FA TYPE |
|
||||||||||||||||
|
SIZE |
Ø B |
C |
Ø D |
E |
F |
H |
N |
S |
Z |
ZD |
PT |
M |
J |
FT |
FR |
FY |
ØFD |
|
|
Ø30 |
16 |
M14XP1.5 |
40 |
25 |
15 |
45 |
20 |
55 |
120 |
160 |
1/4 |
15 |
30 |
11 |
45 |
65 |
11 |
|
|
Ø40 |
20 |
M16XP1.5 |
50 |
30 |
15 |
50 |
25 |
65 |
140 |
180 |
1/4 |
15 |
40 |
13 |
52 |
75 |
11 |
|
|
Ø50 |
25 |
M22XP1.5 |
60 |
35 |
20 |
50 |
25 |
65 |
140 |
180 |
3/8 |
15 |
40 |
15 |
63 |
90 |
12 |
|
|
Ø63 |
30 |
M26XP1.5 |
73 |
40 |
20 |
60 |
30 |
65 |
155 |
200 |
3/8 |
15 |
45 |
18 |
80 |
110 |
14 |
|
|
Ø80 |
40 |
M36XP1.5 |
95 |
45 |
25 |
65 |
35 |
90 |
190 |
235 |
1/2 |
15 |
45 |
20 |
102 |
135 |
18 |
|
|
Ø100 |
50 |
M40XP2.0 |
114 |
50 |
25 |
65 |
35 |
110 |
210 |
255 |
1/2 |
15 |
50 |
20 |
122 |
165 |
20 |
|
|
Ø125 |
60 |
M50XP2.0 |
140 |
60 |
30 |
70 |
40 |
125 |
235 |
285 |
3/4 |
20 |
55 |
25 |
148 |
195 |
24 |
|
