圓型油壓缸TC尺寸圖

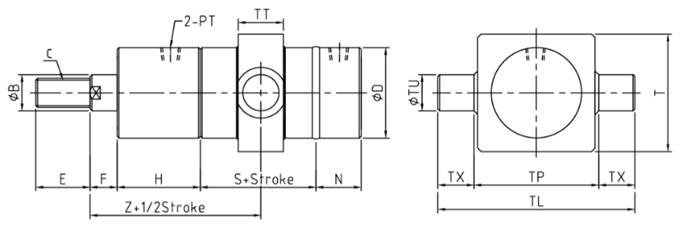

圓油TC型 RCB+TC

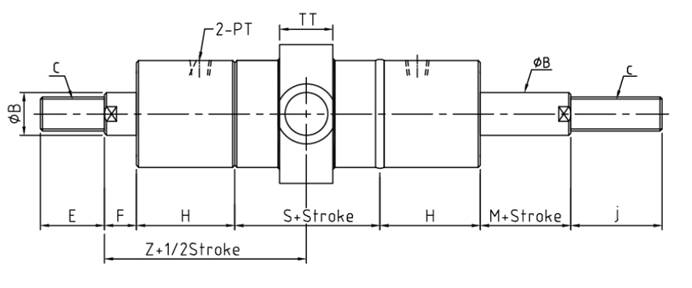

圓油TC雙軸型 RCD+TC
|
RCB-RCD TYPE |
TC TYPE |
|
||||||||||||||||||
|
SIZE |
Ø B |
C |
Ø D |
E |
F |
H |
N |
S |
Z |
PT |
M |
J |
T |
TT |
TX |
TP |
TL |
ØTU |
|
|
|
Ø30 |
16 |
M14XP1.5 |
40 |
25 |
15 |
45 |
20 |
55 |
87.5 |
1/4 |
15 |
30 |
44.5 |
24 |
16 |
49 |
81 |
16 |
|
|
|
Ø40 |
20 |
M16XP1.5 |
50 |
30 |
15 |
50 |
30 |
65 |
97.5 |
1/4 |
15 |
40 |
65 |
28 |
20 |
69 |
109 |
20 |
|
|
|
Ø50 |
25 |
M22XP1.5 |
60 |
35 |
20 |
50 |
30 |
65 |
102.5 |
3/8 |
15 |
40 |
75 |
33 |
25 |
85 |
135 |
25 |
|
|
|
Ø63 |
30 |
M26XP1.5 |
73 |
40 |
20 |
60 |
30 |
65 |
112.5 |
3/8 |
15 |
50 |
90 |
40 |
32 |
98 |
162 |
32 |
|
|
|
Ø80 |
40 |
M36XP1.5 |
95 |
45 |
25 |
65 |
35 |
95 |
137.5 |
1/2 |
15 |
50 |
110 |
43 |
32 |
118 |
182 |
32 |
|
|
|
Ø100 |
50 |
M40XP2.0 |
114 |
50 |
25 |
65 |
35 |
110 |
145 |
1/2 |
15 |
50 |
135 |
50 |
40 |
145 |
225 |
40 |
|
|
|
Ø125 |
60 |
M50XP2.0 |
140 |
60 |
30 |
70 |
40 |
125 |
162.5 |
3/4 |
20 |
55 |
165 |
58 |
50 |
175 |
275 |
50 |
|
|
